Cablesson - IR Injector - IR over HDMI Remote Control Extender Kit
- Compatible with 480i 480p 720p 1080i 1080p Easy and simple to setup
- Gold Plated HDMI Female to Male Adapter with IR Plug
- Transmit the IR Signal over the already installed HDMI cable
- Transfers IR where you need without losing any HDMI signal
- Compatible with most HDMI equipped devices (With IR Frequency between 33khz - 43khz Single Band (Single Band Emitter)
The Cablesson IR over HDMI kit enables you to use your remote and control functions (such as pause rewind etc) even when the source devices are located out of sight in another room or hidden inside a cupboard.
Relay your remote controls IR signal down on a HDMI cable from the HDTVs location where the HDMI source device is out of sight/range of the remote control.
How This Works -The Cablesson HDMI over IR kit uses the unused CEC channel of your HDMI cable run to send the IR signal through it (CEC channel is used only for certain HDTVs that can send control commands to your video sources so if you use CEC you don't need to extend your remote controls)
Compatible with any HDMI equipped device with the Cablesson HDMI over IR Kit there is no need to install additional cabling you can use your existing HDMI cable. You can even use the IR over HDMI Kit with other brands of HDMI Matrix Switches and Splitters.

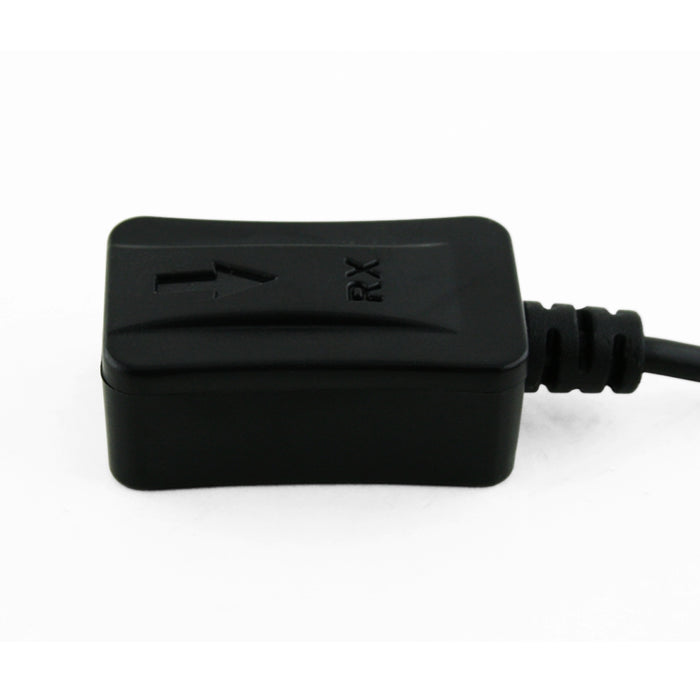

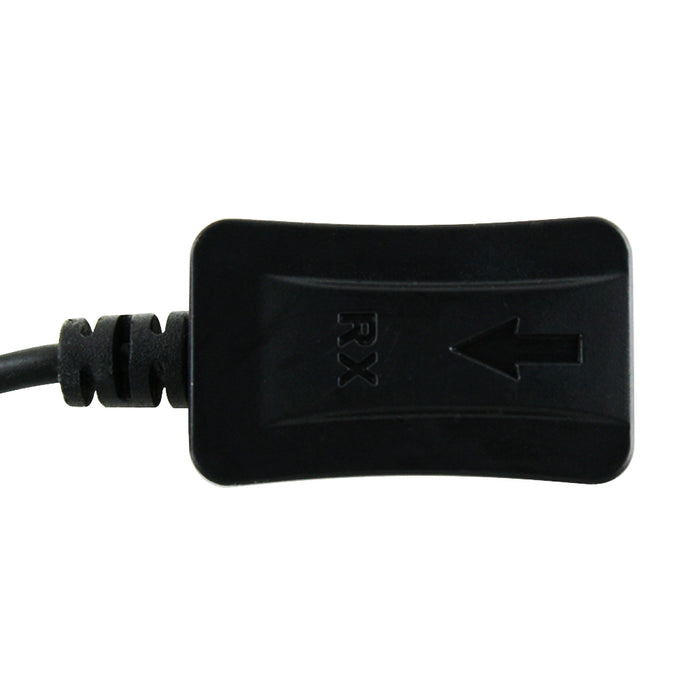

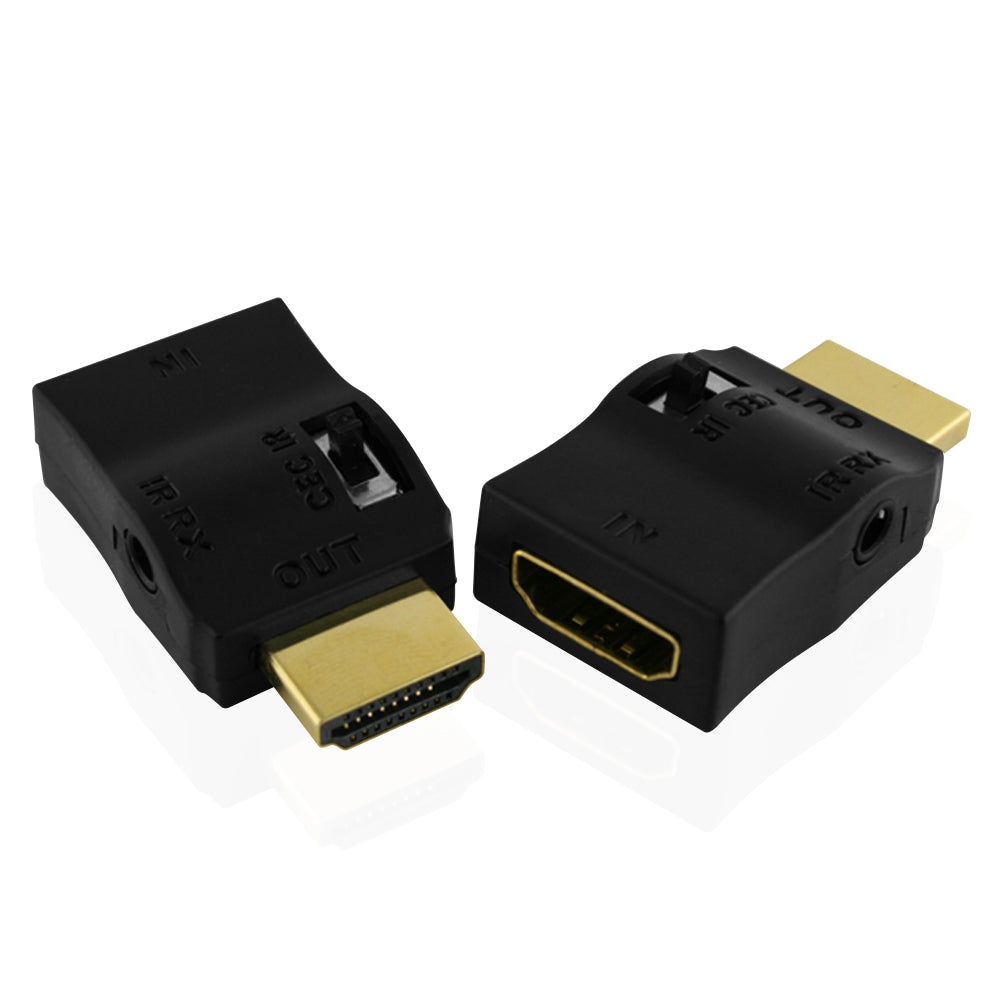

Very easy to setup the package consists of 2 x adapters that simply connect onto both ends of your HDMI cable. Once connected the magic eye receiver dongle sees the remote control signals and sends them back down the HDMI cable to be blasted at the source by the transmitter dongle.
NB. Manufacturer HDMI link / CEC protocols such as Samsung Anynet Link Sony Bravia Link Panasonic Viera Link etc will not function during IR over HDMI mode. CEC needs to be selected on the adapters to re-enable the shared manufacturer HDMI link functions. The supported IR frequency range is 33khz - 60khz.
Designed in Oxford United
