Van Damme Plasma Grade 75 Ohm Standard Coax Cable (1-150m)

Key Features

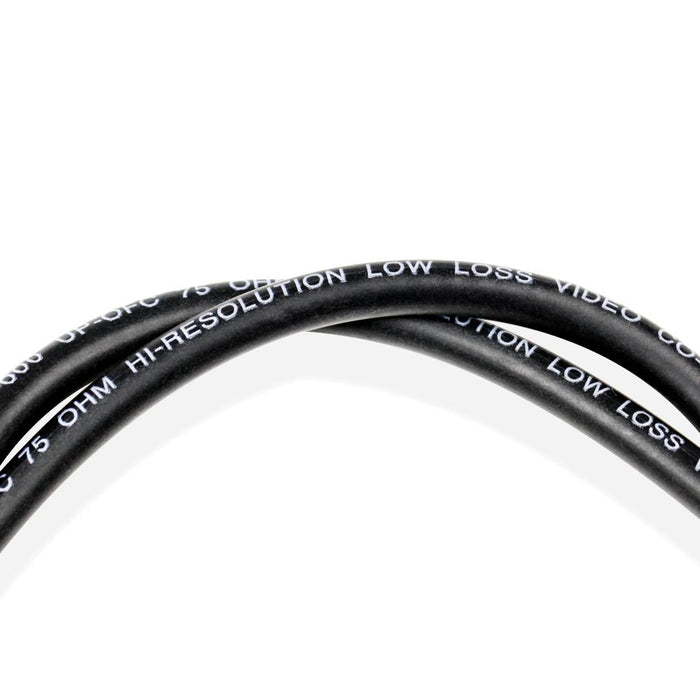

Van Damme Standard 75 Ohm Plasma Grade Video Coaxial Cable overall cable diameter 6.15mm. Conductor Resistance 85 Ohm/Km conductor stranding 7x0.20mm AWG 24/7 weight 51 kg/km. Part number: 268-306-000.

Applications: analogue video transmission up to 100 metres suitable for SPDIF digital audio and word clock. Can be used with serial digital video transmissions up to 138 metres.

Uses RG59 type crimp connectors colour coding suitable for RGBHV RGBS YUV and other video formats.

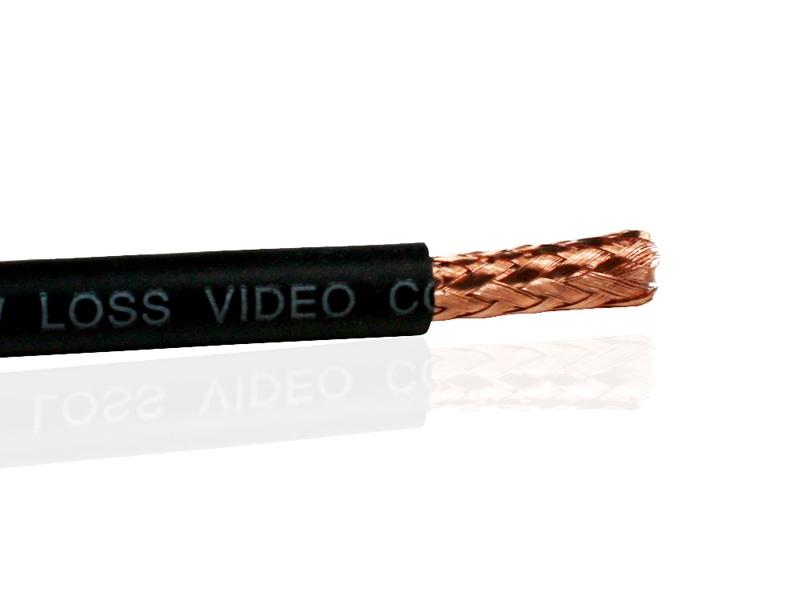

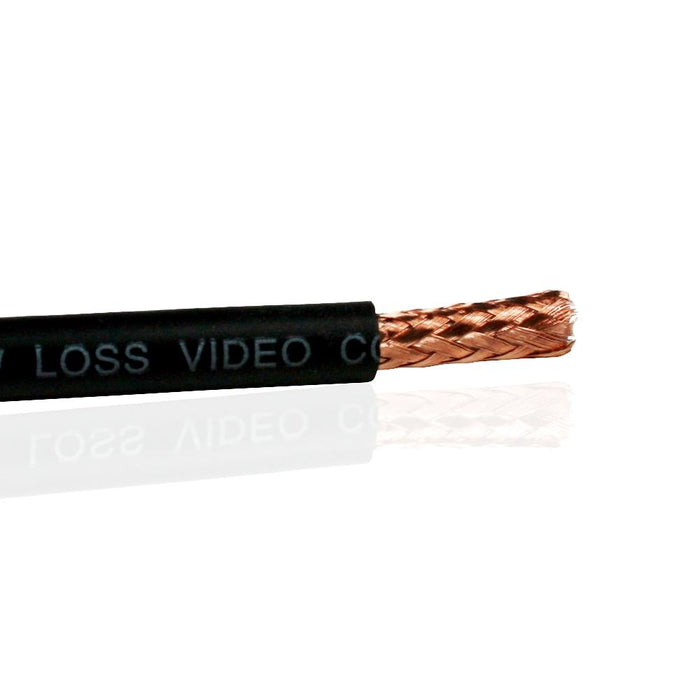

Bare ultra pure oxygen free copper (UPOFC) conductors for high efficiency signal transmission PVC insulation and special flexible PVC jacket - RAL9005.

Recommended connectors: Van Damme / Neutrik BNC male.

Description

Van Damme Standard 75 Ohm Plasma Grade Video Coax is a high resolution cable designed for use with analogue video signals.Precision performance is combined with flexibility usually only found in microphone cables resulting in an excellent video cable for dynamic use in the broadcast video and presentation markets.
Applications
Analogue video transmission up to 100 metres
Suitable for SP Dif digital audio and word clock
Application notes
Can be used with serial digital video transmissions up to 138 metres
Uses RG59 type crimp connectors
Colour coding suitable for RGBHV RGBS YUV and other video formats
Transmission length guidelines
These transmission lengths have been calculated throughout to a maximum attenuation of -30dB at the frequency
corresponding to half of the actual signal data rate for SMPTE 259. SMPTE and others advise that 90% of this cable.
