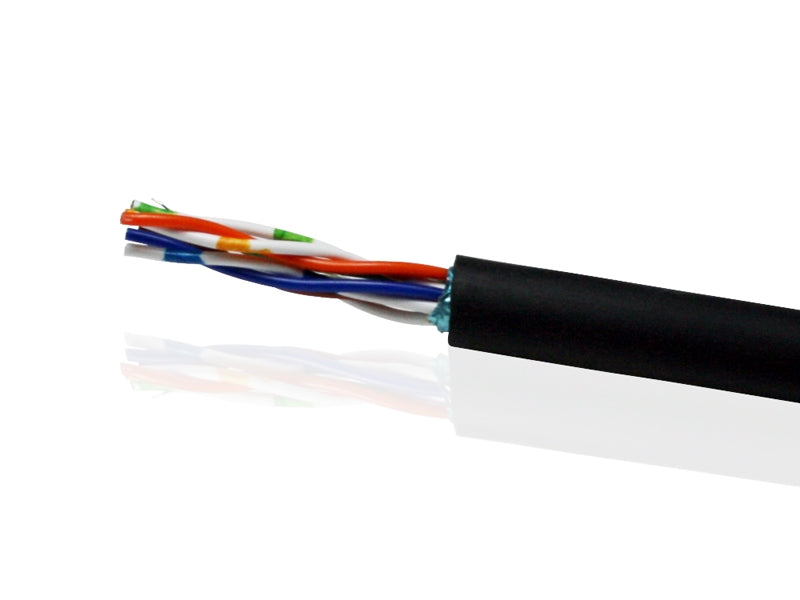

Van Damme Tourcat Cat 5E Flexible Stranded Conductor Cable F/UTP, Black 268-450-000 125 Metre / 125M
by Van Damme
Sold out
£365.63 GBP
£243.75 GBP
SKU 103584
Key Features
Van Damme Tourcat Flexible Series Category Cable overall cable diameter 6.00mm. Conductor Resistance 135 Ohm/Km conductor stranding 7x0.16mm AWG 26/7 weight 34 kg/km. Part number: 268-450-020.Applications: patch cords and link cables for Ethernet and Ethernet based protocols flexible and robust so ideal for touring and dynamic use ideal for use with the Neutrik Ethercon.
Application notes: Meets the requirements of Category 5E TIA/E IA-568-B.2-2001. Recommended maximum distance for 100MBits/s data rate is 75 metres; longer runs are possible but not guaranteed.
Bare oxygen free copper conductors for high efficiency signal transmission flexible PVC composite Jet Black jacket - RAL 9005.
Recommended connectors: CAT 5E RJ45 for screened and unscreened cable (F/UTP / U/UTP).
Description
Widely expanded for this product release the Tourcat Range now has 3 types of single Cat 5E cable and 2 multicore versions. Ethernet and Ethernet based protocols continue to proliferate in the professional and domestic audio visual market and the choice of products in the Tourcat Range now supports most applications.The original Van Damme Tourcat is a flexible patch cable that has the feel and flexibility of Van Damme Microphone Cable. Van Damme U/UTP Tactical Cat 5E is a rugged solid conductor unscreened cable with polyethylene cross member for touring use.
Key Features
Conductor: Bare oxygen free copper
Conductor Stranding: 7x 0.16mm (0.14mm2) AWG 26/7
Overall Jacket: Flexible PVC Composite Jet Black RAL 9005
Overall diameter: 6.00mm
Recommended maximum distance for 100MBits/s data rate is 75 metres; longer runs are possible but not guaranteed
