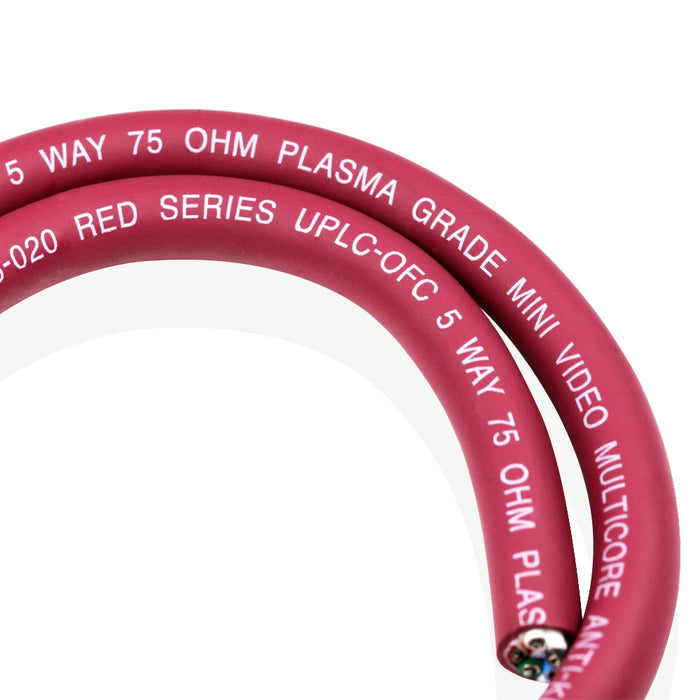

Van Damme Red Series Plasma Grade Mini Coaxial Video Multicore Cable 5 Way 75 Ohm 268-305-020 19 Metre / 19M

Sold out
£235.85 GBP
£157.23 GBP
SKU 103484

Key Features

Van Damme Red Series Miniature Plasma Grade Video Multicore 5-Way Cable overall cable diameter 9.60mm. Conductor Resistance 225 Ohm/Km conductor stranding 7x0.20mm AWG 24/7 weight 106 kg/km. Part number: 268-305-020.

Applications: multicore video signal transmissions - SVHS (YC) YUV RGBS and RGBHV (VGA). Custom length multipin to BNC breakouts.

Application notes: 30 metre recommended maximum length for analogue video longer run lengths achievable using appropriate distribution amplifiers (DAs).

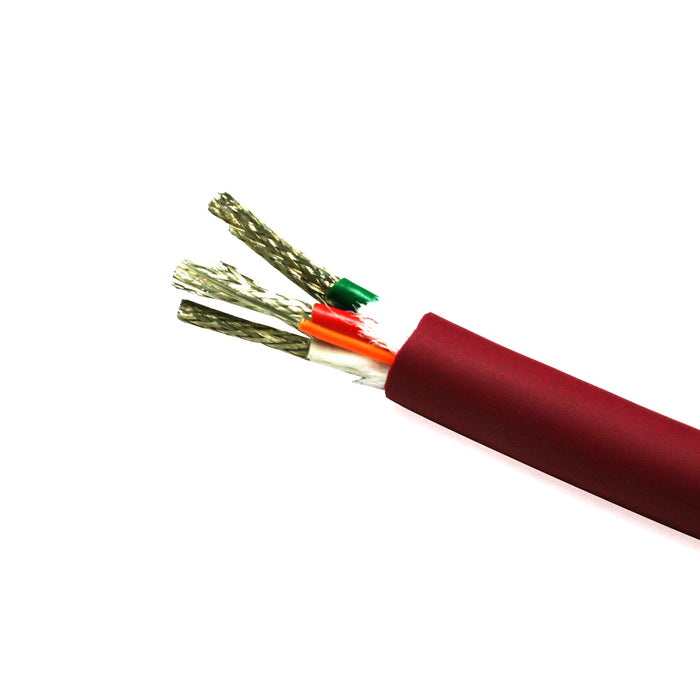

Tinned oxygen free copper conductors for high efficiency signal transmission flexible PVC composite Purple Red jacket - RAL 3004. Industry standard colour coded (Red Green Blue Black White) coax colours.

Recommended connectors: Van Damme / Neutrik / Belden Compression BNC male.

Description

The Van Damme Red Series Miniature video multi-core 5 way Coax cables are exceptionally flexible and are designed to seamlessly integrate with industry standard multipin connectors such as SVHS (4 pin mini din) connectors.
30 metre recommended maximum length for analogue video
Multicore video signal transmissions - SVHS (YC) YUV RGBS and RGBHV (VGA)
Longer run lengths achievable using appropriate distribution amplifiers (DAs)

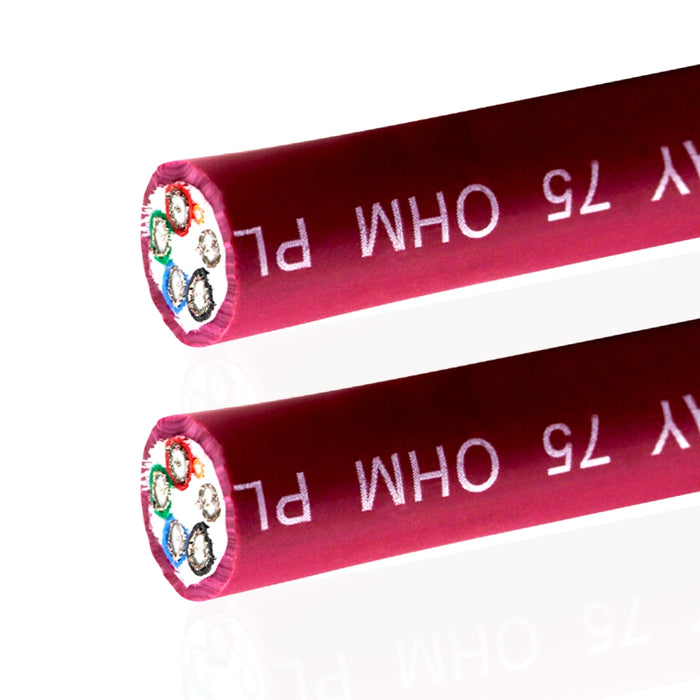

5 way multicores are industry standard colour coded
Overall Cable Diameter : 9.6mm
