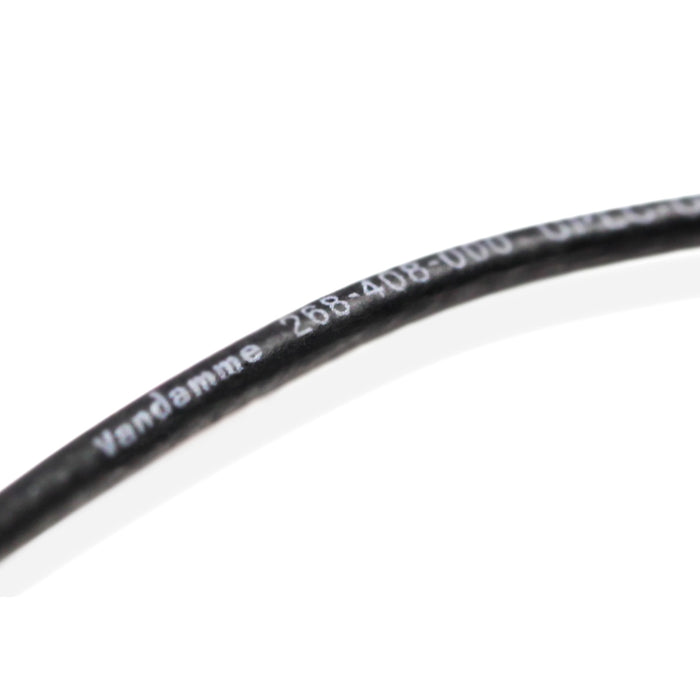

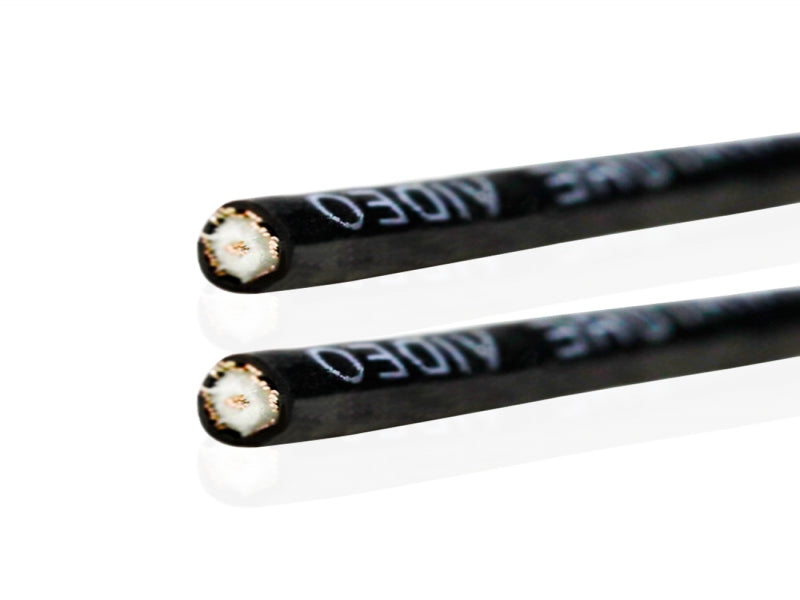

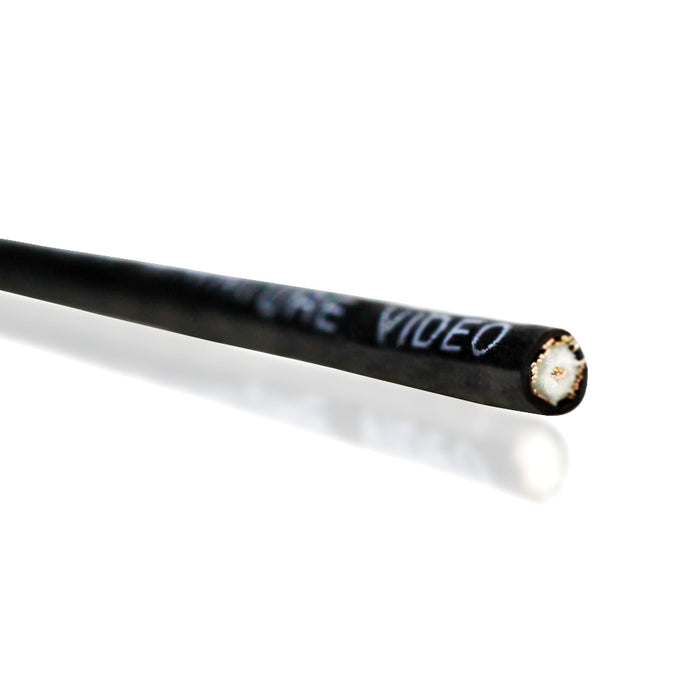

Van Damme 75 Ohm Plasma Grade Hi-Resolution Miniature Video Coaxial Cable, Black 268-408-000 13 Metre / 13M
Key FeaturesVan Damme Miniature 75 Ohm Plasma Grade Video Coaxial Cable overall cable diameter 2.60mm. Conductor Resistance 235 Ohm/Km conductor stranding 7x0.12mm AWG 30/7 weight 10.5 kg/km. Part number: 268-408-000.
Applications: analogue video transmission up to 30 metres internal rack and patch panel wiring multipin connector breakouts. Uses RG179 type crimp connectors colour coding suitable for RGBHV RGBS YUV and other video formats.
Bare ultra pure oxygen free copper (UPOFC) conductors for high efficiency signal transmission PVC insulation and special flexible PVC jacket - RAL9005.
Recommended connectors: Van Damme / Neutrik / Belden Compression BNC male.
Van Damme Miniature 75 Ohm Plasma Grade Video Coaxial Cable has been designed to provide the best possible performance from a low overall diameter stranded video cable.
The range is mechanically equivalent to RG179.
Analogue video transmission up to 30 metres
Internal rack and patch panel wiring
Multipin connector breakouts
Uses RG179 type crimp connectors
Colour coding suitable for RGBHV RGBS YUV and other video formats
