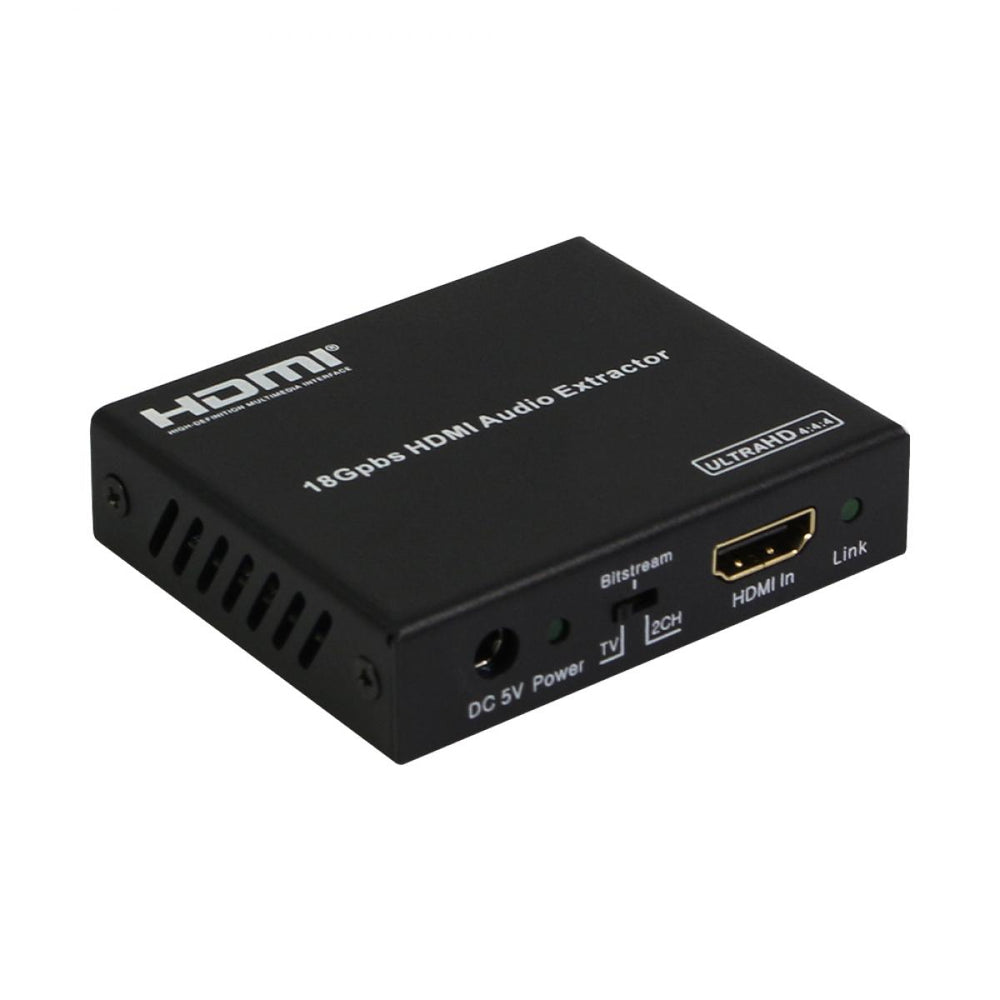

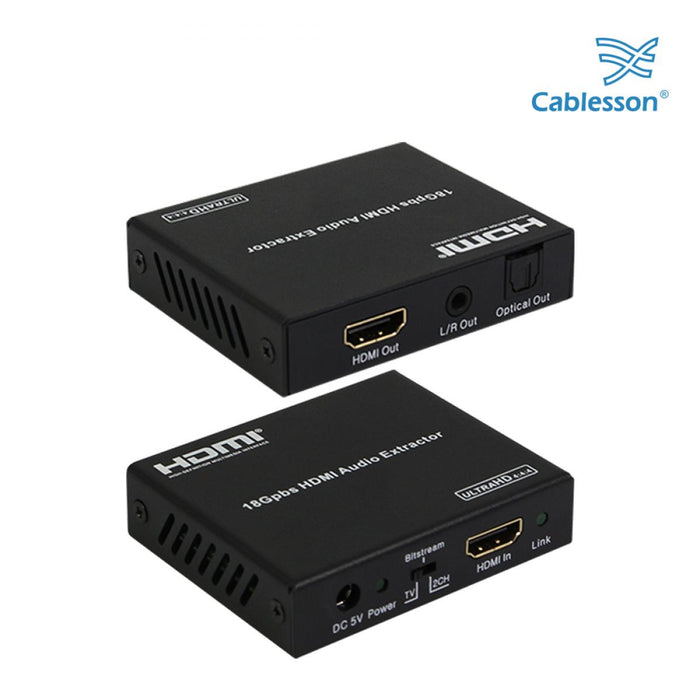

Cablesson HDMI 2.0 Audio Extractor

Extracts audio from a digital HDMI signal and converts it to a Optical Toslink SPDIF audio output or a high quality analog 2-channel stereo output.

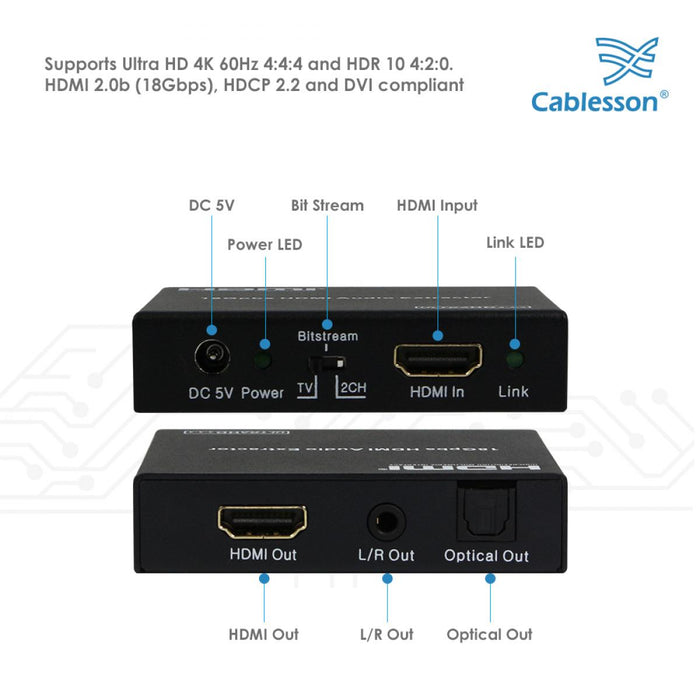

HDMI 2.0b compliant, supports Ultra HD 4K 60Hz 4:4:4 and HDR 10 4:2:0. HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant

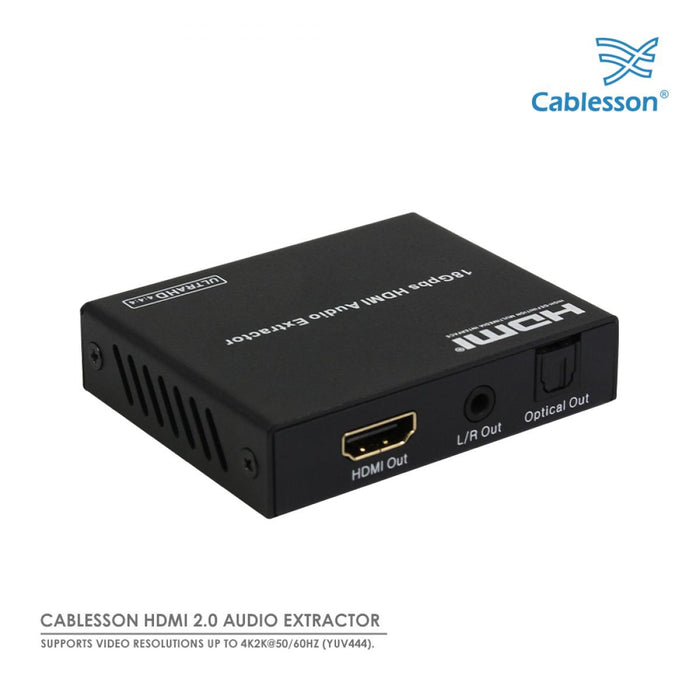

Supports Video resolutions up to 4K2K@50/60Hz (YUV444).
Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio. Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH.
Supports HDMI High Bit Rate(HBR) audio pass through Audio sample rates up to 192kHz; 10bits HDR (High Dynamic Range) pass through;

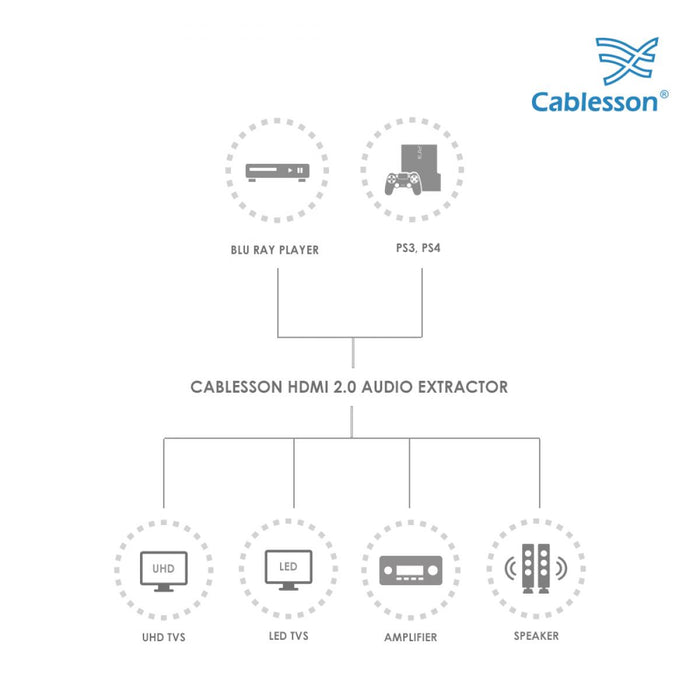

Extract both digital and analogue audio from a HDMI source and output to an audio device in either digital or analogue formats, while sending the video signal to a 4K display or projector.

This extractor supports the full 18G HDMI 2.0 bandwidth to display full 4096x2160@60Hz resolutions. Ideal for use with the latest source devices including set-top boxes, games consoles and media players.
Â

• Extracts HDMI audio to multi-channel optical (SPDIF) or L/R analog audio
• Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
• Audio sample rates up to 192kHz
• 10bits HDR (High Dynamic Range) pass through;
